1/4" Drive - 12 point Universal/Swivel Sockets SAE & METRIC MSRP: Was: Now: $60.00 - $85.00 Choose Options
206/407/505 Swashplate Roll Stake Bearing Work Aid Kit MSRP: Was: Now: $250.00 - $3,000.00 Choose Options
206/505 Transmission & Tail Rotor Gearbox Input Pinion Remover MSRP: Was: Now: $550.00 - $1,450.00 Choose Options
206/407/505 Transmission Oil Pump Accessory Gear Drive Spanner Nut Socket MSRP: Was: Now: $290.00 Add to Cart
Swashplate Gimbal Ring Bolt Removal Workaid (204B, 205, 212 & 412) MSRP: Was: Now: $300.00 Add to Cart
206/407/505 Tail Rotor Gearbox Input/Output Bearing Retaining Nut Wrench MSRP: Was: Now: $425.00 Add to Cart
206/407/505 Freewheeling Unit Shaft Removal Work Aids MSRP: Was: Now: $150.00 - $450.00 Choose Options
Oil and Hydraulic Can Funnels Funnel for gallon and quart sized cans. MSRP: Was: Now: $15.00 Choose Options
Low Profile #2 Phillips Low profile #2 phillips bit to get into super tight locations. MSRP: Was: Now: $25.00 Add to Cart
Field Maintenance Sheet Metal Field maintenance sheet metal kit for small jobs that any mechanic should be able to do anywhere. Contains: Rivet Squeeze with 1.5" and 3" Yoke 1ea Rivet Set: 2 flush sets and 3/32", 1/8", 5/32", & 3/16" universal head sets 1ea Blind Rivet... MSRP: Was: Now: $450.00 Add to Cart
Heavy Duty Mast Work Table Table DOES NOT include splined wrench. Used to securely take apart and assemble mast assemblies. Due to the high torque on mast bearing nuts, the old way of clamping the mast into a vice may allow the mast to rotate and pivot on the vice which can... MSRP: Was: Now: $2,750.00 Add to Cart

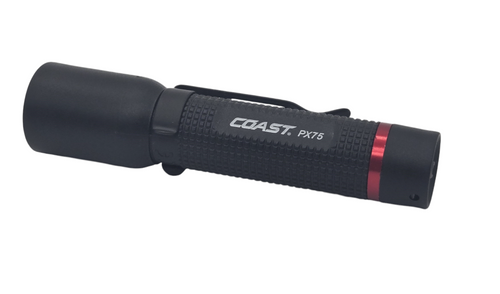

UV Flashlight for Transmission and Engine Oil Leak Checks UV flashlight for detecting oil leaks. Works great in the daytime (with cowlings on), works even better at night. Make sure you wash off your aircraft well before performing a ground run leak check with this light. It will light up ALL your residual oil... MSRP: Was: Now: $30.00 Add to Cart
206 Main Rotor Trunnion Bearing Pressing Plug Used to press trunnion bearing inner race from spindles of trunnion. MSRP: Was: Now: $125.00 Add to Cart
1/4" Drive - 12 point Universal/Swivel Sockets SAE & METRIC We have located some quality swivel sockets at an affordable price that we are happy to offer here! They are made by Genius Tools. SAE (6pc) set consists of 1/4", 5/16", 3/8", 7/16", 1/2", & 9/16" Metric (9pc) set consists of 6mm, 7mm, 8mm, 9mm,... MSRP: Was: Now: $60.00 - $85.00 Choose Options
1/4" Drive Breaker Bar 1/4" drive breaker bar that is perfect for our special tools and replaces a ratchet that is always rotating. You should be fighting the helicopter, not your tools. Works great with the 407 Hydraulic Pump Wrenches. MSRP: Was: Now: $15.00 Add to Cart
206 Main Rotor Grip Seal Holder For Purging Grease This work aid is for providing backup to the seal while purging the head of grease. MSRP: Was: Now: $55.00 Add to Cart
3/4" Drive Ratchet *EXCESS INVENTORY* 3/4" Drive Ratchet for a price you won't find anywhere else. These are extras from a kit we purchase and do not use the ratchet. So we are offering it reasonably priced. MSRP: Was: Now: $50.00 Add to Cart
206 Main Rotor Grease Catch Bottle Adapter Here is a tool that you will love. It turns a plastic bottle into a grease receptacle when you are purging the grip. Once you are finished, just throw away the bottle. Keeps from making a huge mess on top of the aircraft. No wiping/smearing needed... MSRP: Was: Now: $15.00 Add to Cart
206/505 Tail Rotor Static Balance Kit Static balancing kit for the Bell 206 and 505. This balancing kit is similar to our main rotor kit in that it is hung and not on a table top. MSRP: Was: Now: $2,500.00 Add to Cart
Pin Gauges For Inspecting Splines All pin gauges are 2 inches long unless otherwise specified. Pin gauges can be modified for different lengths for an extra fee. If you do not see the diameter pin you need, let us know. We can have them here the very next day. We try to keep all... MSRP: Was: Now: $20.00 - $350.00 Choose Options
10X Magnifying Glass We chose this model of magnifying glass because the cup is setup for the correct focal distance. Just place the magnifying glass on the object you are trying to inspect and you are focused. No fighting the loupe trying to figure out the correct focus... MSRP: Was: Now: $20.00 Add to Cart
206/505 Mast Assembly Overhaul Kit Kit contains all special tools to complete 206 mast overhaul as per CR&O. MSRP: Was: Now: $2,260.00 Add to Cart
206/407/505 Swashplate Roll Stake Bearing Work Aid Kit Bearing staking tool for the swashplate bearings. Allows you to perform the maintenance on the aircraft without removing the swashplate. T101530 MSRP: Was: Now: $250.00 - $3,000.00 Choose Options
Ultimate Swing Wrench Kit Ultimate Swing Wrench Kits contains 28 pieces. They are: T-handle, Screwdriver handle, and curved handle Open End: 1/4, 5/16, 3/8, 7/16, 1/2, & 9/16 Ratcheting Open End: 5/16 Regular Box End: 1/4, 5/16, 3/8, 7/16, 1/2, & 9/16 Ratcheting Box End:... MSRP: Was: Now: $1,750.00 Add to Cart
206/407/505 Transmission Accessory Bevel Gear Bearing Work Aid Used to hold the accessory drive gear while applying torque to the gearshaft spanner nut. Bell P/N T101504 MSRP: Was: Now: $450.00 Add to Cart
Spring Scale 0-50lbs 0-50 lbs Spring Scale. This spring scale is made of brass and will not shatter in your tool box like the cheap plastic spring scales. I've used both, brass and the plastic case spring scales. They both work. I just prefer the brass since they are a... MSRP: Was: Now: $110.00 Add to Cart
407 Freewheeling Assembly Seal Installation/Removal Tool This tool is used to both remove and install the seal from the freewheeling shaft nut. Bell P/N T103307 MSRP: Was: Now: $500.00 Add to Cart
206/505 Transmission & Tail Rotor Gearbox Input Pinion Remover 206/505 Transmission And Tail Rotor Gearbox Input Pinion Remover Bell P/N T101507 MSRP: Was: Now: $550.00 - $1,450.00 Choose Options
206/407/429/505 Adapter Wrench 206L - Freewheeling Unit 407 - Freewheeling Unit 429 - Clutch Assembly 505 - Transmission Input Seal Bell P/N T103306 MSRP: Was: Now: $335.00 Add to Cart
206 Tail Rotor Gearbox Filler Neck Work Aids Work aids for removal and replacement of filler neck of tail rotor gearbox. Installer is aluminum tool pictured. Remover is the slide hammer with adapter. MSRP: Was: Now: $75.00 - $300.00 Choose Options
206 Trim Tab Bender Used to bend the trim tabs during track & balance. MSRP: Was: Now: $1,500.00 Add to Cart
Dykem Cross Check Torque Stripe We have this torque stripe in orange only MSRP: Was: Now: $10.00 Add to Cart
205/206/212/407/412/505 Transmission Planetary Install Pin This pin is used in removing or installing planetary pinions or the spur gear in the planetary assemblies. Helitools P/N 206-XMSN-OH-10 Bell P/N T101332 MSRP: Was: Now: $75.00 Add to Cart
205/206/212/407/412/505 Transmission Planetary Guide Shaft This work aid is used in aligning the pinion assembly inner race during removal and installation of the retaining shaft in lower planetary housing. Helitools P/N 206-XMSN-OH-11 Bell P/N T101574 MSRP: Was: Now: $400.00 Add to Cart
206/407/505 Transmission Accessory Gear Backlash Work Aid Used to check backlash between the transmission main input gear and the accessory drive gear. Helitools P/N 206-XMSN-OH-07 Bell P/N T101735 MSRP: Was: Now: $1,500.00 Add to Cart
206L/505 Transmission Holding Fixture And Spline Wrench Set Fixture to hold the 206 L-model and 505 transmission during repair and overhaul. Helitools P/N 206-XMSN-OH-08L Bell P/N T101883 MSRP: Was: Now: $2,800.00 Add to Cart
206/505 Main Rotor Trunnion Centering Work Aid - Old Style This is the original work aid called out in the maintenance manual to perform the centering of the main rotor trunnion. You will also need a set of V-Blocks to go along with it. You can find V-Blocks here. We suggest you... MSRP: Was: Now: $200.00 Add to Cart
212/412/205 Tail Rotor Driveshaft Coupling Work Aid 212-412 Repack Tool C-shaped part used to be 3D printed. We have had feedback that the 3D printed part is breaking under pressure. Contact us if you need replacement. We will be sending out replacements soon. (June 10, 2024) MSRP: Was: Now: $180.00 Add to Cart
206/505 Tail Rotor Gearbox Pinion Bearing Work Aid Used to install the bearings on the input pinion of the tail rotor gearbox. Input pinion definitely not included for this price. Helitools P/N 206-TRDS-F-02 MSRP: Was: Now: $60.00 Add to Cart
206/407/505 Tail Rotor Gearbox Backlash Spline Wrench This spline wrench is used to measure backlash on the tail rotor gearbox and also to clamp into a vice. Helitools P/N 206-TRGB-OH-03 Bell P/N T101511 MSRP: Was: Now: $695.00 Add to Cart
206 Mast Spline Overhaul Wear Pins These are the .080 and .160 wear pins the manual calls out for to do the checks on the mast splines during overhaul. This set comes with 2ea .0800" and 2ea .1600" pins. Click here for a selection of different size pins MSRP: Was: Now: $46.00 Add to Cart
206/505 Transmission Duplex Bearing Nut Wrench Used on the duplex bearing retainer nut. Helitools P/N 206-XMSN-OH-02 Bell P/N T101501 MSRP: Was: Now: $1,500.00 Add to Cart
206/505 Mast V-Block These are the 4inch V-Blocks the maintenance manual calls for to do mast inspections/overhauls. It is a 2 piece set. It also doubles as an amazing paperweight. (Tested and approved) Helitools P/N 206-MAST-F-04 MSRP: Was: Now: $250.00 Add to Cart
206/505 Mast Assembly Nut Wrench Wrench is used to remove and torque the nut on the mast assembly during overhaul. Helitools P/N 206-MAST-F-02 Bell P/N T102040 MSRP: Was: Now: $650.00 Add to Cart
206/505 Mast Holding Fixture (Alternate) Used to hold the mast assembly when torque is applied to the ball bearing retaining nut during removal and installation. Helitools P/N 206-MAST-F-01 Bell P/N T101499 CLICK HERE FOR 206-240-002-101 MSRP: Was: Now: $800.00 Add to Cart
206/505 Transmission Backlash Work Aid This item is used to check the backlash between the main input pinion gear and the input driven bevel gear. CR&O has all the details. The base plate is NOT included. Click here for the baseplate Helitools 206-XMSN-OH-05 Bell... MSRP: Was: Now: $900.00 Add to Cart
206/407/505 Freewheeling Unit Cap Restraint Fixture Fixture used to hold freewheeling unit cap on vice while doing maintenance Helitools P/N 206-FWU-OH-11 Bell P/N T103308 MSRP: Was: Now: $475.00 Add to Cart
206/407/429/505 Freewheeling Unit Bearing Installation Sleeve For pressing the roller bearing during freewheeling unit maintenance. For the "clutch" on the 429. Helitools 206-FWU-OH-16 Bell T103332 MSRP: Was: Now: $180.00 Add to Cart
206 Mainrotor Head Sling Sling has a clear vinyl coating on the 1/4" cables. Cables are 6 feet long.Hooks have safety latches. Cable comes with inspection tag, serialized and weight certification.Included is a Certificate of Compliance/Test​Cable is rated at 2200 lbs. Each leg... MSRP: Was: Now: $210.00 Add to Cart
206 Lifting Clevis Lifting clevis for the 206 series (and now the 505). 204-011-178-001 MSRP: Was: Now: $1,850.00 Add to Cart
204/205/206/212/505 Pitch Horn Spreader Use it to spread the pitch horn and remove the trunnion fittings as per Bell Maintenance Manual. MSRP: Was: Now: $135.00 Add to Cart
206/505 Blade Pin Press No longer will you need to waste time with a stuck pin. Once you decide the pin is stuck, place the pin press around the grip with the large hole around the top of the pin. (The tool is upside down in the pictures) Reinstall the bottom plate (the... MSRP: Was: Now: $725.00 Add to Cart
206/505 Bell Control Tube Trammel Accurate, simple trammel for the 206B, L and 505 main rotor pitch change links. This trammel will outperform other universal trammels. MSRP: Was: Now: $555.00 Add to Cart
206/505 Grip Lock Bolt - 2pcs Set Simplest, fastest, and best work aid to keep from scrapping a pair of TT Straps. Stronger and more reliable than T-handle type locks that most people use. MSRP: Was: Now: $78.00 Add to Cart
Bolt Extractor This work aid lets you apply pressure to the bolt while applying penetrating lube. Once the bolt pops loose it can easily be removed. Pressure is applied to the bolt and not to the tail boom fitting. Cracked fittings require tail boom removal at lots of... MSRP: Was: Now: $225.00 Add to Cart
206/505 Series Main Rotor Grip Locks - 2pcs set These lock tight, won't slip and are used to adjust the grips level when aligning and static balancing the main rotor. MSRP: Was: Now: $205.00 Add to Cart
206/407/505 Transmission Oil Pump Accessory Gear Drive Spanner Nut Socket Socket specifically designed for the spanner nut on the accessory gear that drives oil pump. Maintenance manual calls out for AN8515-1 Spanner Wrench. Our socket is a better design that won't slip and make you bust your knuckles. MSRP: Was: Now: $290.00 Add to Cart
Reversible Swing Wrenches These reversible swing wrenches are an improvement over our other wrenches. We are using the reversible Gear wrench brand so when you get into a tight spot and can't get the wrench off the nut or bolt you can simply flip the reversing lever and back out... MSRP: Was: Now: $95.00 - $105.00 Choose Options
Brass Screwdriver For Compass Adjustment No more trying to make a screw driver for adjusting compasses with a hammer and welding rod.This is a quality, solid brass screwdriver made especially for adjusting compasses.It's 4 3/4 inches long and the blade tip is 5/32" wide. MSRP: Was: Now: $23.00 Add to Cart
206/407/505 Oil Cooler Blower Driveshaft Spanner Wrench Wrench to get off the spanner nut on the oil cooler blower. The L-model wrench will also work on the 407. MSRP: Was: Now: $70.00 Add to Cart
206 Knurl Nut Wrench This will easily remove that stuck knurl nut. It is especially great if you want to replace the knurl nut liner and don't want to ruin the knurl nut with channel locks because the knurl nut is frozen. MSRP: Was: Now: $130.00 Add to Cart
Grease Fitting - Straight These are the threaded ones, not the quick disconnect ones that get grease everywhere except the part you want it in. MSRP: Was: Now: $15.00 Add to Cart
Grease Fitting - 90° These are the threaded ones, not the quick disconnect ones that get grease everywhere except the part you want it in. MSRP: Was: Now: $20.00 Add to Cart
90° Grease Coupler I recently found this 90 degree grease coupler that works great on hard to access grease fittings.Works really well on the oil cooler blower bearings on the Bell 407. It slides in from the side when straight on access is difficult or next to impossible. MSRP: Was: Now: $16.00 Add to Cart
Swashplate Shim Alignment Studs Holds the shims in position when doing the swashplate friction check. The hex head is 5/32" drive.An allen wrench is easier to get in to tight areas than a long phillips screwdriver. Can also be used as jack screws on the 206 and 407 transmission input... MSRP: Was: Now: $30.00 Add to Cart
206 Main Rotor Grip Excluder Seal Remover Insert into the excluder bushing, turn knob to tighten which expands fingers on the end and remove seal. MSRP: Was: Now: $630.00 Add to Cart
206/505 Latch Bolt Nut Socket This socket is normally used in the shop for removal of the latch bolt on the grip assembly. See item #4 in one of the posted pictures. Bell P/N T101554 MSRP: Was: Now: $125.00 Add to Cart
206L Tach Generator Driveshaft Removal & Installation Work Aid Work aid to remove and replace tach generator driveshaft as seen in figure 63-7c MSRP: Was: Now: $125.00 Add to Cart
206 Main Rotor Hub Pitch Horn Lock Use this work aid when lifting the hub assembly from the mast. Remove upperside of pitch control links and install the work aid. MSRP: Was: Now: $425.00 Add to Cart
206 Tail Rotor Hub Trunnion Fixture Fills in the trunnion, so it is not crushed during pressing of wear sleeves. MSRP: Was: Now: $50.00 Add to Cart
206 Swashplate Uniball Fixture Supports lower portion of uniball when pressing in the lower bushings. MSRP: Was: Now: $150.00 Add to Cart
206 Swashplate Uniball Lower Bushing Remover Removes lower bushings from swashplate uniball. MSRP: Was: Now: $55.00 Add to Cart
Torque Adapters 1/4" Drive Hard to find 1/4" drive torque adapters. Most torque adapters you will find are 3/8" drive. These will allow you to use that low torque 1/4" torque wrench without the 3/8" to 1/4" adapter. SAE: The standard set consists of 1/4", 5/16", 3/8", &... MSRP: Was: Now: $50.00 - $200.00 Choose Options
Bell 429 & 505 Live Mount Gauge Pressure gauge in 2 psi increments (as per Bell Maintenance Manual) to calibrate live mounts on 429 and 505.Disclaimer: The manufacturer of the gauge will not warranty any gauge shipped out of the continental U.S. I can furnish a... MSRP: Was: Now: $575.00 Add to Cart
Bell 505 Tail Boom Rigging Pin - 143 ​Required for rigging the tailboom on the 505. 427-201-001-143 MSRP: Was: Now: $85.00 Add to Cart
Bell 505 Tail Boom Rigging Pin - 147 ​Required for rigging the t/boom on the 505. 427-201-001-147 MSRP: Was: Now: $85.00 Add to Cart
505 Free Wheeling Unit Drain Hose The freewheeling unit chip plug on the 505 sits in a pan assembly that requires an extra short drain fitting because of clearance issues. The position also requires a suction pump to pull the oil out of the freewheeling unit assembly. It just won't... MSRP: Was: Now: $145.00 Add to Cart
Air Conditioner Belt Tensiometer Belt Tensiometer specified by Bell for checking air conditioning belt tension. Scale reads in pounds and kilograms Measures tension from 30 to 160 lb., and 15 to 75 kg. Die-cast aluminum body, nylon indicator arm and pressure pad Fits in pocket... MSRP: Was: Now: $30.00 Add to Cart
Oil Can Opener One Black Plastic "Church Key" FOD Free Turbine Oil Can Opener MSRP: Was: Now: $7.00 Add to Cart
ENGWASH-HF-BRACKET This is just the brackets and fasterners necessary to attach your (ENGWASHx2) double engine wash bottle set up to a Harbor Fright Welding Cart. Purchase your own Welding Cart from Harbor Freight and use these brackets to fasten them to the... MSRP: Was: Now: $300.00 Add to Cart
Swashplate Gimbal Ring Bolt Removal Workaid (204B, 205, 212 & 412) Swashplate Gimbal Ring Bolt Removal Workaid (204B, 205, 212 & 412) 204B-22-27 205-22-45 205B-22-29 212-22-74 412-22-93 MSRP: Was: Now: $300.00 Add to Cart
206/407/505 Tail Rotor Gearbox Input/Output Bearing Retaining Nut Wrench Used to apply torque to the input bearing retaining nut and the output bearing retaining nut. T101512 206-TRGB-F-04 MSRP: Was: Now: $425.00 Add to Cart
206/505 Transmission Bearing Installation and Removal Plug P/N 206XBS-HT Used to support the input driven spiral bevel gearshaft duplex bearing by the outer race while pressing bearing into or out of the transmission lower case. T101503 206-XMSN-OH-25 MSRP: Was: Now: $725.00 Add to Cart
206/505 Transmission Gear Shaft Nut Wrench Used to apply torque to the input driven spiral bevel gearshaft duplex bearing outer ring retaining nut. Bell P/N T101502 Helitools' P/N 206-XMSN-OH-03 MSRP: Was: Now: $225.00 Add to Cart
206/505 Mast Holding Fixture Used to hold the mast assembly when torque is applied to the ball bearing retaining nut during removal and installation. Bell P/N 206-240-002-101 Helitools P/N 206-MAST-F-05 CLICK HERE FOR T101499 MSRP: Was: Now: $850.00 Add to Cart
206/505 Trunnion Hex Screw Wrench Used to torque hex insert screw in trunnion/pillow block. 206-MR-OH-18 MSRP: Was: Now: $96.00 Add to Cart
206 & 505 Main Rotor Blade Alignment Pins - 2pcs Easier and faster than mirrors and cheaper than a laser.No calibration needed. Drop it in the bolt hole and set the string. 206-MR-F-06 MSRP: Was: Now: $200.00 - $250.00 Choose Options
206 Planetary Shaft Sleeve Used to remove aand install the planet gear shaft from and into the arm of the spider and the bearing assembly inner race. T101506 206-XMSN-OH-20 MSRP: Was: Now: $525.00 Add to Cart
206/505 Tail Rotor Rigging Flap Lock Work Aid Bell designed flap lock for 206/505. These were acquired through purchase of HeliTools inventory. Limited supply. See our design here. MSRP: Was: Now: $25.00 Add to Cart
206/407/505 Freewheeling Unit Wrench Used to remove and install the 214-040-241 nut. This tool replaces wrench assembly 407-240-006-101. 206-FWU-OH-18 T101960 MSRP: Was: Now: $150.00 Add to Cart
206/505/407 Freewheeling Unit Duplex Bearing Removal Driver Used to remove the 406-040-531 bearing from the 406-040-508 Cap Assembly. 206-FWU-OH-15 T103324-101 MSRP: Was: Now: $250.00 Add to Cart
206/407/505 Freewheeling Unit Bearing Installation Sleeve Used to install the 206-040-206 bearing into the 406-040-516 shaft. 206-FWU-OH-17 T103333 MSRP: Was: Now: $90.00 Add to Cart
206/407/505 Freewheeling Unit Shaft Removal Work Aids Used in conjuction with a press to remove the shaft from the bearing. T103310-101 MSRP: Was: Now: $150.00 - $450.00 Choose Options
Oil Collector Pan - Alignment Pilot Workaid Oil Collector Pan - Alignment Pilot Workaid for top case 206-040-550 Figure 63-19 MSRP: Was: Now: $250.00 Add to Cart
Oil Collector Pan - Alignment Pilot Work aid Oil Collector Pan - Alignment Pilot Work aid for top case 206-040-532 Figure 63-19 MSRP: Was: Now: $250.00 Add to Cart
Oil Collector Pan - Alignment Pilot Work Aid Set Oil Collector Pan - Alignment Pilot Work Aid Set For top case 206-040-550 & 206-040-532 Figure 63-19 MSRP: Was: Now: $450.00 Add to Cart
206/407/505 Tail Rotor Output Shaft Nut Work Aid Used to apply torque to and remove the output shaft inner nut. T101513 206-TRGB-OH-05 MSRP: Was: Now: $250.00 Add to Cart
206/505 Tail Rotor Gearbox Backlash Work Aid Used to hold output shaft so you can check the backlash between the tail rotor gearbox input pinion gear and output bevel gear. T102093 206-TRGB-OH-06 MSRP: Was: Now: $450.00 Add to Cart
Bell 505 Portable Hydraulic Pump Drive Unit Portable Hydraulic Pressure Drive Unit for Bell 505. Due to the tight work space where the hydraulic pump is located, the unit comes with hydraulic hoses to be able to remove the hyd pump from the aircraft and move it away from the tight work area... MSRP: Was: Now: $4,750.00 Add to Cart
Bell 505 CORDLESS Portable Hydraulic Pump Drive Unit Portable CORDLESS Hydraulic Pressure Drive Unit for Bell 505. Due to the tight work space where the hydraulic pump is located, the unit comes with hydraulic hoses to be able to remove the hyd pump from the aircraft and move it away from... MSRP: Was: Now: $4,900.00 Add to Cart

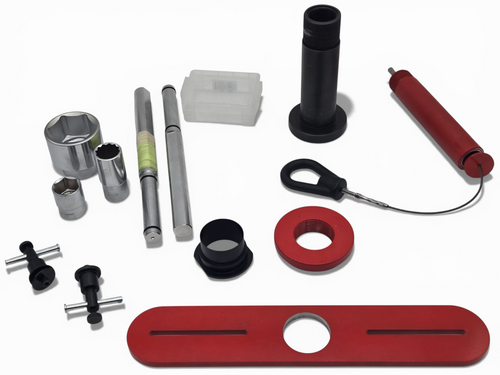

206B/L/505 Main Rotor Static Balance Kit Static Balancing Kit for 206B/L and 505. Comes in protective case with extra plastic bin to store lead weights. This is from Chuck Dugan from Helitools. We acquired his inventory. Contact us for any other tools that was previously supplied by... MSRP: Was: Now: $4,900.00 Add to Cart
